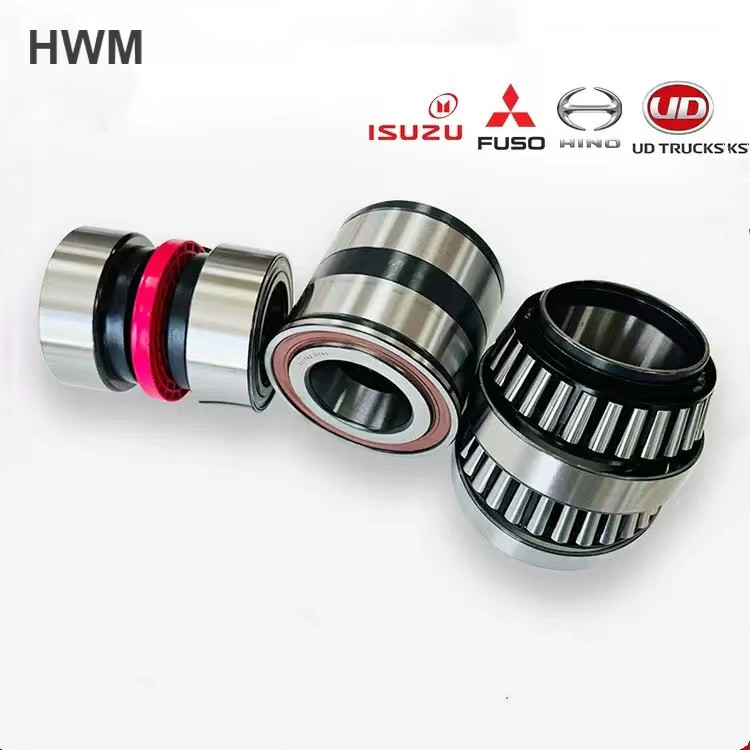

Truck Wheel Hub Bearing Series

‹

›

Truck Wheel Hub Bearing Series
CAD drawings

‹

›

Product Introduction
The main operating characteristics of a heavy-duty truck wheel hub bearing are as follows: The heavy-duty truck wheel hub bearing is assembled on the main shaft of the heavy-duty truck's axle. The inner ring of the double-row tapered roller bearing is fixed to the main shaft. The vehicle controls the rotation of the axle main shaft, which drives the heavy-duty truck's ball housing, which in turn rotates the outer ring and rollers at a specific speed. The heavy-duty truck's tire is mounted on the bolts, driving the vehicle. The main structure and assembly methods of heavy-duty truck wheel hub bearings
Product Parameters

Model number

Comparison KOYO

Comparison FAG

Comparison SKF

Comparison NSK

Basic dimensions(mm) d

Basic dimensions(mm) D

Basic dimensions(mm) B

Weight ≈kg

vehicle model

Model number

Comparison

Basic dimensions(mm)

Weight

vehicle model

Model number

Comparison KOYO

Comparison FAG

Comparison SKF

Comparison NSK

Basic dimensions(mm) d

Basic dimensions(mm) D

Basic dimensions(mm) B

Weight ≈kg

vehicle model

DAC36720042 - - - 36BWD03 36 72 42 0.68 -
DAC36720042
-
-
-
36BWD03
36
72
42
0.68
-
DAC36680033A DAC3668W - - - 36 68 33 0.47 -
DAC36680033A
DAC3668W
-
-
-
36
68
33
0.47
-
DAC36680033 DAC3668AW - - 6BWD04 36 68 33 0.48 Suzuki
DAC36680033
DAC3668AW
-
-
6BWD04
36
68
33
0.48
Suzuki
DAC36650037 DAC3665W - - - 36 65 37 0.45 -
DAC36650037
DAC3665W
-
-
-
36
65
37
0.45
-
DAC35800047A DAC3580WHR4 - - - 35 80 47 1.03 -
DAC35800047A
DAC3580WHR4
-
-
-
35
80
47
1.03
-
DAC35800047 DAC358047BW2RS - - - 35 80 47 0.96 -
DAC35800047
DAC358047BW2RS
-
-
-
35
80
47
0.96
-
DAC35800045 DAC3580W-3HR4 - - - 35 80 45 1.1 -
DAC35800045
DAC3580W-3HR4
-
-
-
35
80
45
1.1
-
DAC35770442 DAC3577W-3 - - - 34.99 77.04 42 0.86 -
DAC35770442
DAC3577W-3
-
-
-
34.99
77.04
42
0.86
-
DAC35720433 - - BAHB633669 - 35 72.04 33 0.57 Fiat,Lancia
DAC35720433
-
-
BAHB633669
-
35
72.04
33
0.57
Fiat,Lancia
DAC35720228 - 544033 BA2B441832AB - 35 72.02 28 0.49 Citroen,Peugeot,Renault,Simca,Talbot
DAC35720228
-
544033
BA2B441832AB
-
35
72.02
28
0.49
Citroen,Peugeot,Renault,Simca,Talbot
DAC35720045 DAC357245CW2RS - - - 35 72 45 0.63 -
DAC35720045
DAC357245CW2RS
-
-
-
35
72
45
0.63
-
DAC35720034 DAC357234A 540763 - - 35 72 34 0.58 Lzw7100,Honda
DAC35720034
DAC357234A
540763
-
-
35
72
34
0.58
Lzw7100,Honda
DAC35720033/31 - - - 35BWD06A 35 72 33 0.55 -
DAC35720033/31
-
-
-
35BWD06A
35
72
33
0.55
-
DAC35720033 DAC357233B-1W 548083 BA2B445535AE - 35 72 33 0.58 Citroen,Peugot
DAC35720033
DAC357233B-1W
548083
BA2B445535AE
-
35
72
33
0.58
Citroen,Peugot
DAC35720028 - - - - 35 72 28 0.46 Citroen,Peugeot,Renault,Simca,Talbo
DAC35720028
-
-
-
-
35
72
28
0.46
Citroen,Peugeot,Renault,Simca,Talbo
DAC357200233/31 DAC357233B1 562686 FWB14 - 35 72.02 33 0.54 -
DAC357200233/31
DAC357233B1
562686
FWB14
-
35
72.02
33
0.54
-
DAC35680233/30 DAC3568W-6 - - - 35 68.02 33 0.49 Nissan
DAC35680233/30
DAC3568W-6
-
-
-
35
68.02
33
0.49
Nissan
DAC35680038/36 - - - 35BWD16 35 68 38 0.5 -
DAC35680038/36
-
-
-
35BWD16
35
68
38
0.5
-
DAC35680037 DAC3568A2RS 541153A BAHB633295B - 35 68 37 0.53 Fiat,LanciaSeat,Volvo,Zastava
DAC35680037
DAC3568A2RS
541153A
BAHB633295B
-
35
68
37
0.53
Fiat,LanciaSeat,Volvo,Zastava
DAC35680033/30 - - - 35BWD07A 35 68 33 0.48 -
DAC35680033/30
-
-
-
35BWD07A
35
68
33
0.48
-
